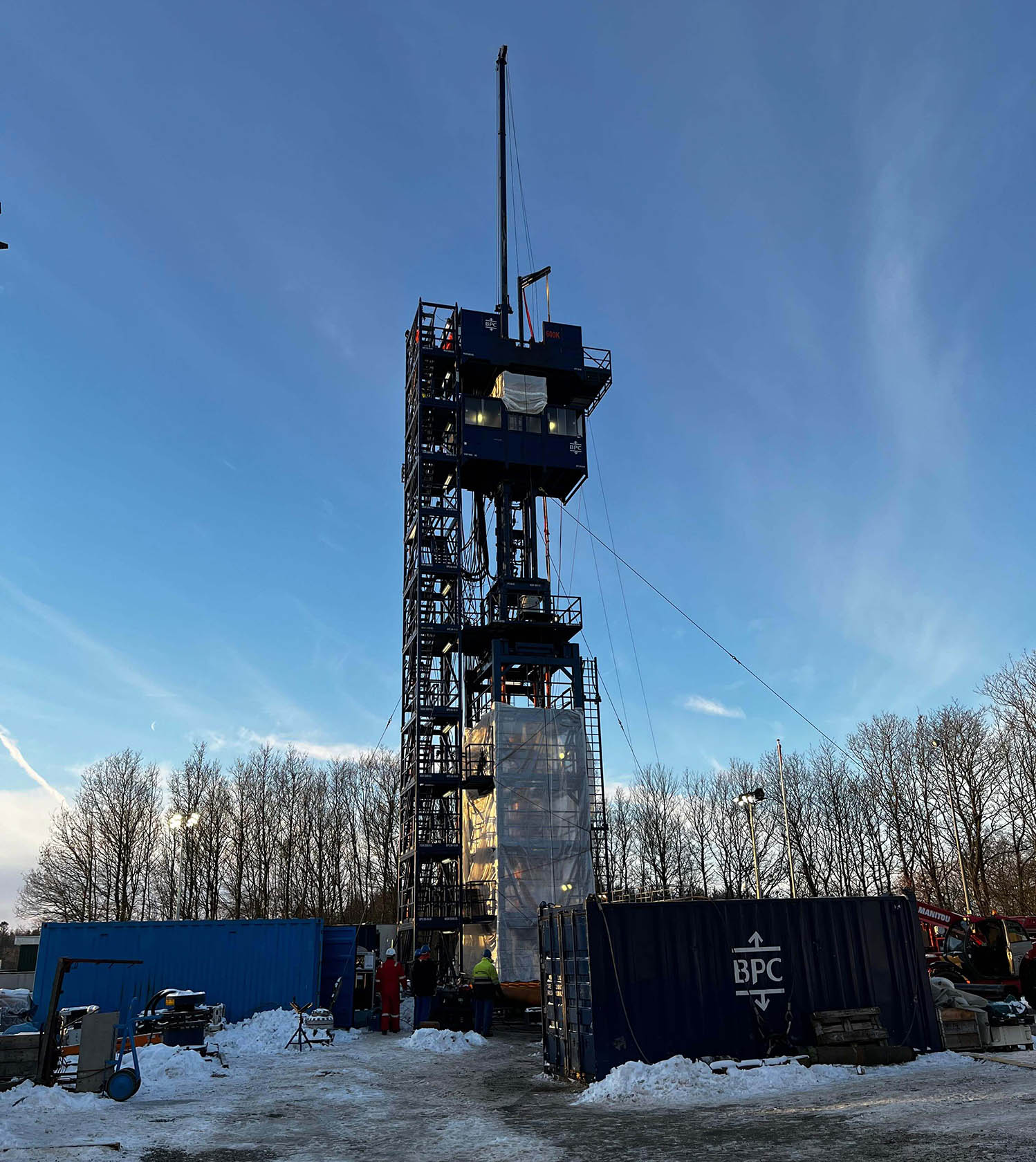

High-Capacity Hydraulic Workover Unit
600K HWO Unit
High push/ pull capacity on a small footprint
Onshore Datasheet PDF
Enter your details to get access to the datasheet
Offshore Datasheet PDF
Enter your details to get access to the datasheet
Advantages & Characteristics
600K HWO/Snubbing Unit, reliable and flexible, has been designed for all well situations: live/dead, onshore/offshore. The 600K satisfies your need for high pull/push capacity, safe and efficient Snubbing or Workover operations in any environment.
Unique “Slip bowl Interlock System”
Small footprint
Flexible
Mobile
Perfect cost/quality
Multi-purpose
Technical Specifications
Comprehensive technical data for engineering evaluation and project planning.
600K HWO Unit
| Specification | Imperial | Metric | Copy |
|---|---|---|---|
| Pull Capacity | 600,000 lbs | 270,000 kg | |
| Push Capacity | 263,000 lbs | 118,000 kg | |
| Rotary Torque | 20,000 lbs | 27,000 Nm | |
| Stroke | 10 ft | 3 m | |
| Through Bore HWO | 13 5/8" | 346 mm | |
| Through Bore Snubbing | 11 1/8" | 283 mm | |
| Slipbowls | 600,000 lbs | 270,000 kg | |
| Total Unit Weight | 80,000 lbs | 40.000 kg | |
| Ginpole | 1x 11,000 lbs 2x 5,500 lbs |
1x 5.000 kg 2x 2.500 kg | br>
Operational Activities
Handling all types of Completions
Packer setting/milling
Live/Dead well operations
Well clean out
Live well Fishing operations
Well Clean-out
Remedial operations
Installation of velocity strings
Do NOT kill your well – Save your formation! Exploit the benefits of our underbalance (UB) operations.
